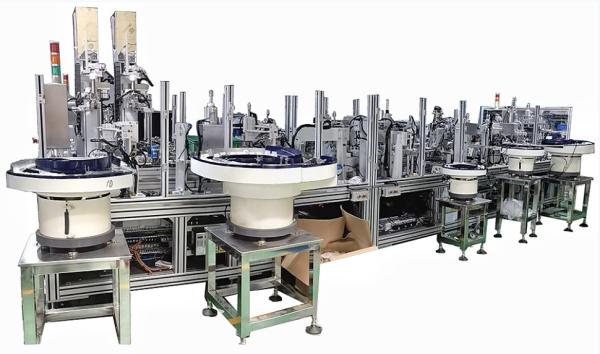

Cap Assembly rotary capping machine Custom With Linear Sliding Rail

Brand Name : Sencan

Model Number : SC-PT-513

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Deliberation

Payment Terms : T/T

Supply Ability : 3 sets per

Delivery Time : 90 work days

Packaging Details : wooden case

Control System : PLC

Condition : New

Capacity : 4500-22000 per/hour

Using Scope : Caps & Closures Assembly

Transmission Type : Flexible

Operation : Touch screen

Product Type : Automatic

Driven Type : Electrical

Contact Now

Highly Cap Assembly Machine With Linear Sliding Rail Conveying System And Precise Positioning

Features

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.

2. Manipulators of each station are independent, simple and easy for daily maintenance.

3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.

4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.

5. Enclosure for feeding plate can be equipped to reduce noise during production.

6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.

7. Whole equipment controlled by PLC system and touch screen operation.

Properties

Applicable products lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle
Production speed 1500-2500pcs/hr (according to customer’s requirement)
Rate of qualified product Above 98%
Rate of operation rate Above 95%
Power source AC380V, 50Hz, 4kw/hr
Dimension Actual size varied with different production speed
Weight About 3000kg
Operator 1set/person
